Streamline SC5436 Single Carport

$3,256.00

(incl GST)

Model: SC5436
Roof: Flat
Area: 11.5m2
Base Size: Width 3240mm, Depth 3550mm
Roof Size: Width 3600mm, Depth 5450mm
Clear Height Entry: 2100mm

Kitset Pack Size – 5.5m (l) x 0.7m (w) x 0.3m (h) and approx. 180kgs
Click here to view assembly instructions.

SKU: SC5436 Category: Full Shed Range Tag: Large Sheds (3m to 4m wide) Brand: Streamline

0.3mm high tensile sheet steel offers stronger protection than many competitors, with three coatings on both sides for maximum corrosion resistance.

Optional 60 x 25mm "Frame Master" aluminum system enhances the kiwi design with added strength and customization.

The optional timber floor kit provides an easy, cost-effective base for your shed, making it simple to build.

Erecting your shed couldn't be easier! With some basic tools and a pair of helping hands, you'll have a shed up in no time.

Choose from a broad selection of popular colours to create the perfect colour scheme and style for your outdoor space.

Backed by a 50-year warranty, giving you long-lasting confidence in the quality, durability, and performance for decades to come.

Customisation

Product Overview

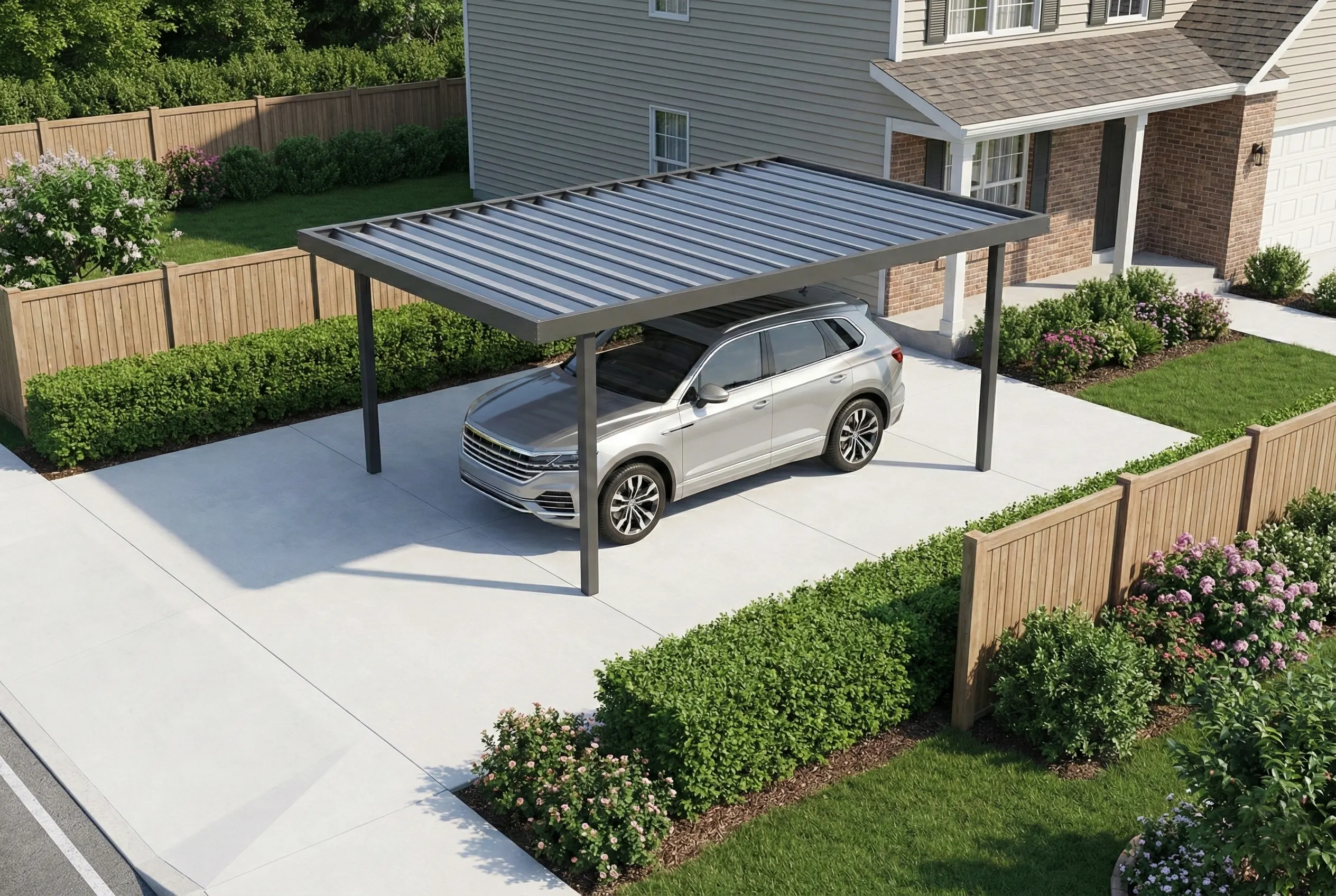

The SC5436 carport offers a robust and streamlined vehicle shelter solution designed and manufactured specifically for New Zealand conditions. Utilizing the exclusive PurlinDek steel roofing profile, this system provides a strong, load-bearing span that maximizes form without compromising on function or rigidity.

High-Strength Construction: Built with PurlinDek 600 roofing, a cold-rolled metal profile made from G550 grade steel that eliminates the need for additional purlins or sub-framing.
Durable Protection: The structure features a structural durability of 25 years when maintained correctly and is backed by a 10-year structural warranty.
Streamlined Design: This modular system is engineered for simplicity and aesthetics, consisting of three main components including roofing iron, fascia/gutter, and fluted steel posts to strip out unsightly fixtures.
Premium Finishes: Available in a range of pre-painted steel colours including Black, Grey Friars, Ironsand, and Titania, or a standard Zinc finish to suit various architectural styles.
Weather Resistance: Designed to withstand local environmental requirements, the roofing profile delivers greater water carrying capacity and features a patented profile for superior strength.

Accessory Options

Available Accessories

Galvanised Top Mount Base Plate: Designed to allow the carport to be erected securely on an existing poured concrete slab rather than digging post holes. This optional accessory consists of a hot-dip galvanised 180x180x10mm mild steel plate and includes the necessary Trubolts for fixation.
Clearlite Translucent Fibreglass Panels: High-specification translucent sheeting designed to fit the PurlinDek profile, installed between the steel roofing sheets. We recommend the Opal finish for its resistance to UV degradation and yellowing, as well as its fully traffic-able weight rating.
